Elliptical Reinforced Concrete Pipe

Elliptical reinforced concrete pipe manufactured by County Materials is a time-tested solution for storm water systems and diverse municipal applications. When design constraints call for shallow depths and high flow, engineers turn to elliptical reinforced concrete pipe. Most sizes available with pre-lubricated gaskets, providing a watertight joint that resists infiltration of silts and sands. Elliptical pipe’s enhanced joint security promotes ease and speed of installation, reducing time and labor costs.

Product Features

Horizontal elliptical (HE) and vertical elliptical (VE) options are available
Available in sizes from 18” circular diameter equivalent up to 120” equivalent
Higher flow capacities at shallower depths (horizontal elliptical)
Accommodates higher flushing velocities at low flows (vertical elliptical)
Ideal substitute for round RCP and arch pipe where height or width restrictions are present

Applications

Storm drains
Culverts
Outfalls
Pedestrian tunnels
Groundwater recharge systems

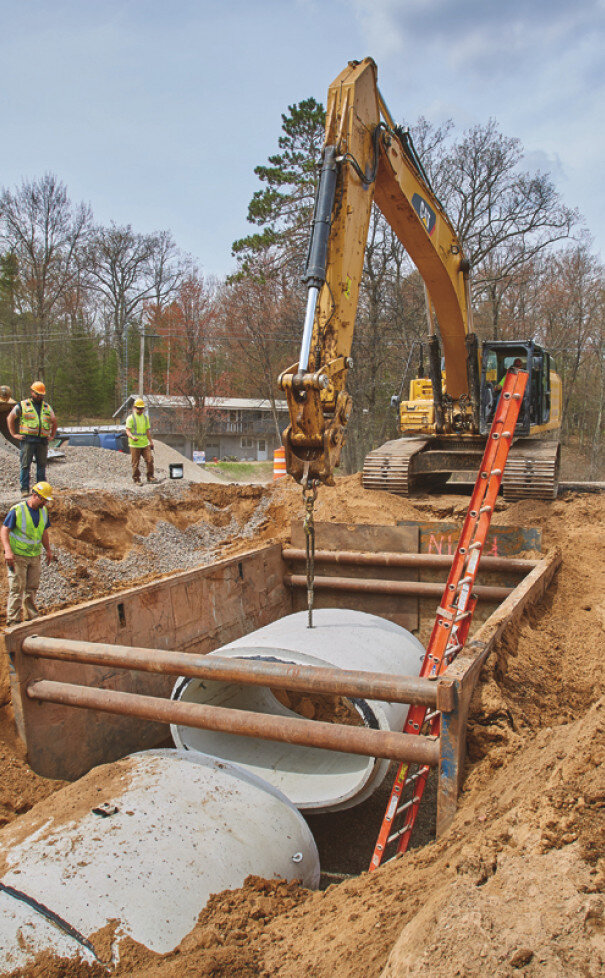

Jacked or tunneled installations
Underground storm water retention structures

County Materials’ Elliptical Reinforced Concrete Pipe meets ASTM C507 & AASHTO M207 specifications and material requirements for reinforced concrete elliptical culvert, storm drain, and sewer pipe.

For size, availability, and gasket options, contact a County Materials Pipe and Precast facility in your area.
